Description

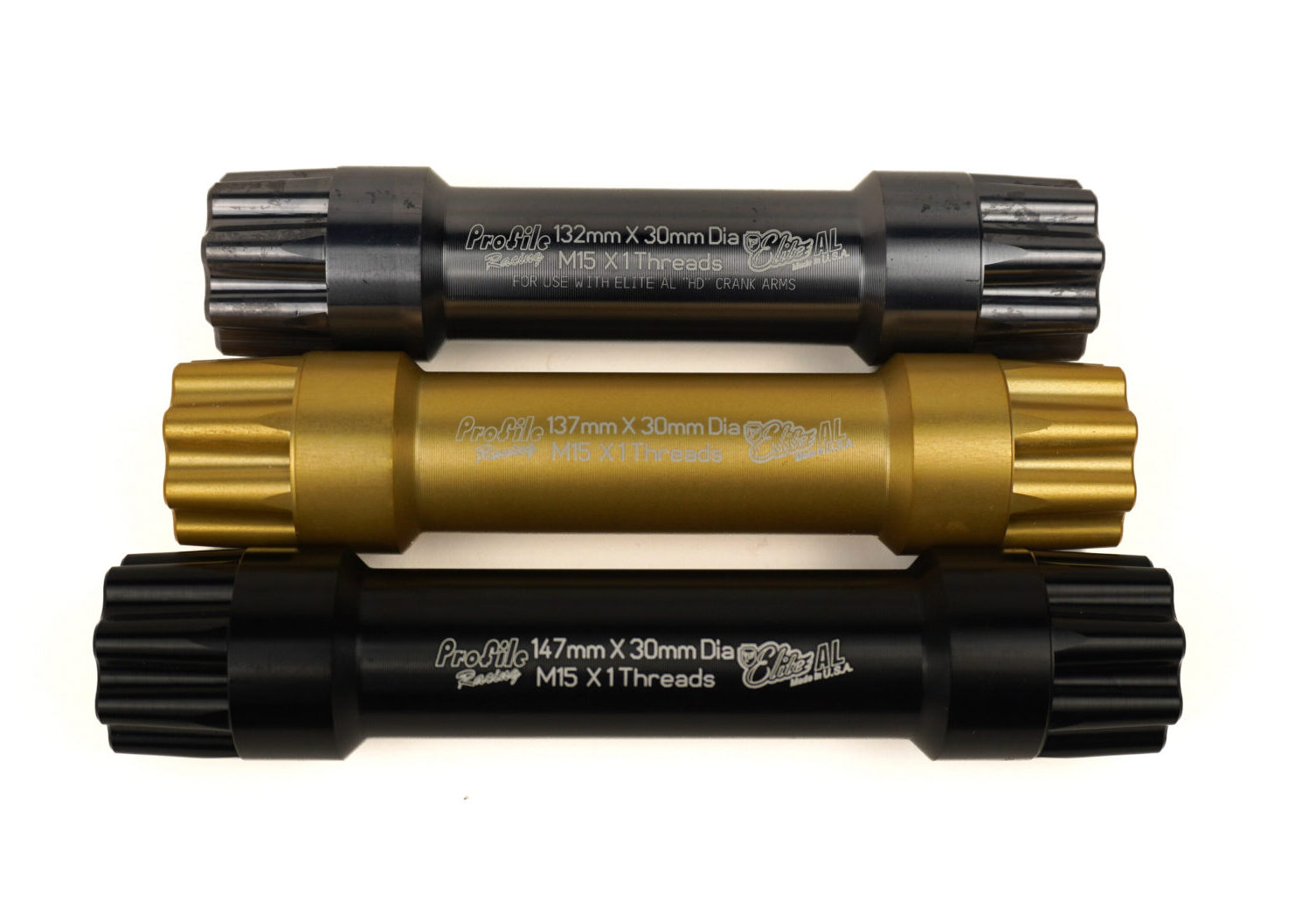

ELITE AL 30MM CRANK AXLES
SPECS:
-7075 AL
-30mm dia. with Profile 8-Spline Taper
-M15 x 1 axle bolt threads
-Available Lengths:

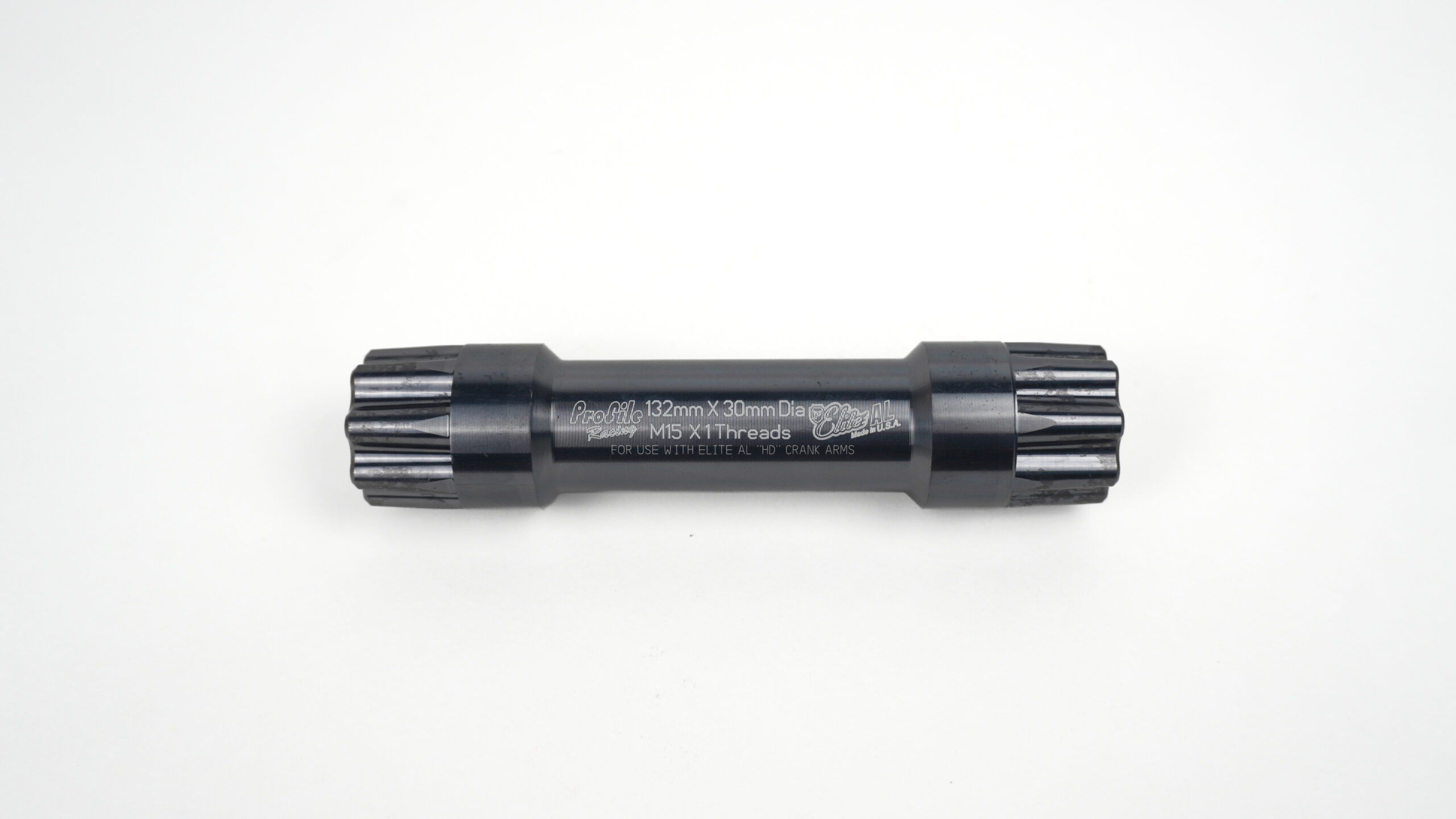

-132mm(for use with 68mm BSA & BB86 bottom bracket)-173mm Q Factor-Silver Anodized Finish

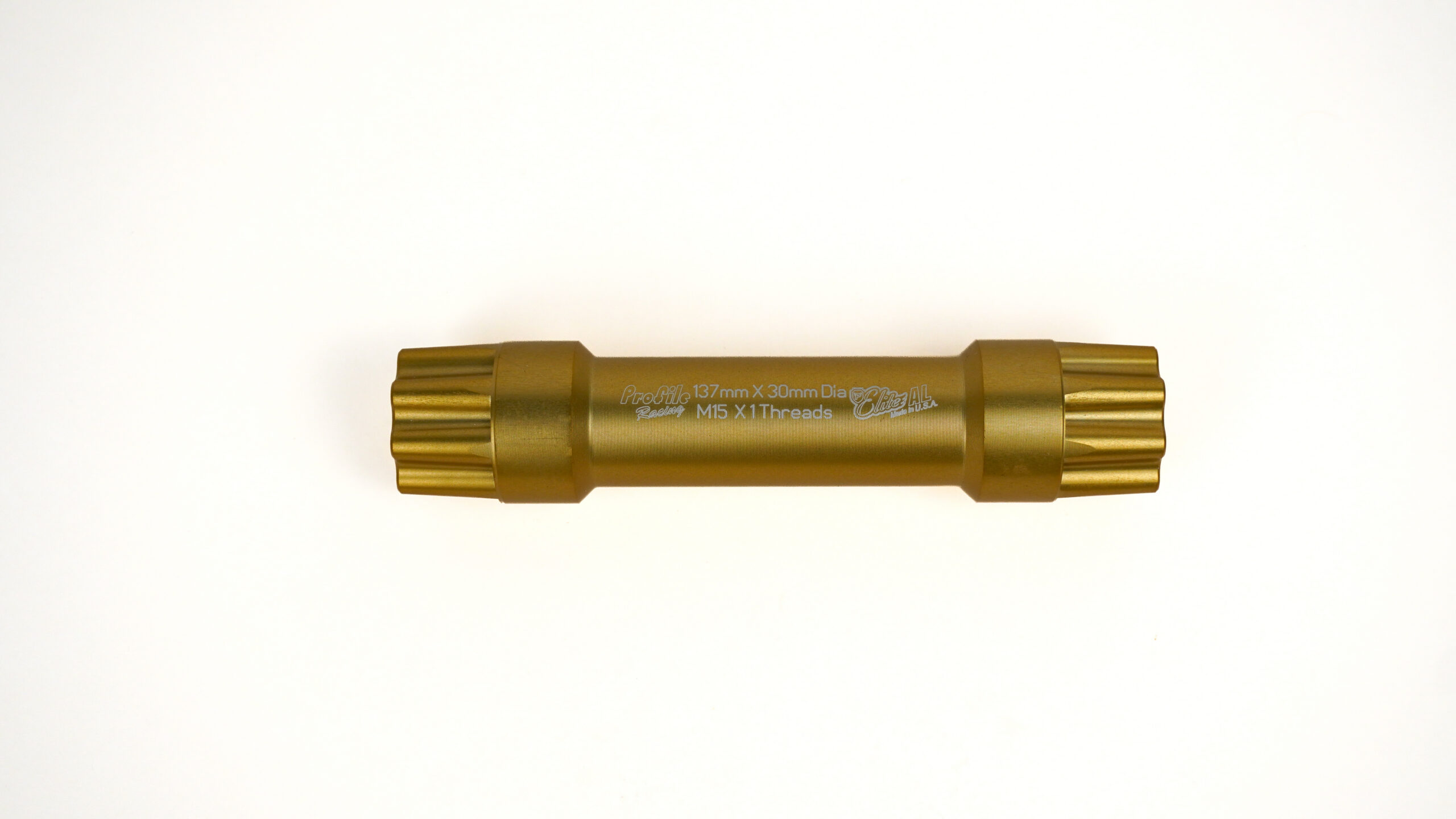

-137mm(for use with 73mm BSA & BB92 bottom bracket)-178mm Q Factor-Gold Anodized Finish
AXLE MOUNTING INTERFACE: Profile 8-Spline Taper
Note: Although Elite AL BMX crank arms and axle are proprietary and can only be used in conjunction with one another, bottom bracket and spider/chainwheel are not. This means many other component manufacturer’s 30mm axle bottom brackets and SRAM 8 Bolt spiders/chainwheels are compatible with this crankset. There are plenty out there to choose from!
