Description
ELITE AL “SL” CRANK KIT

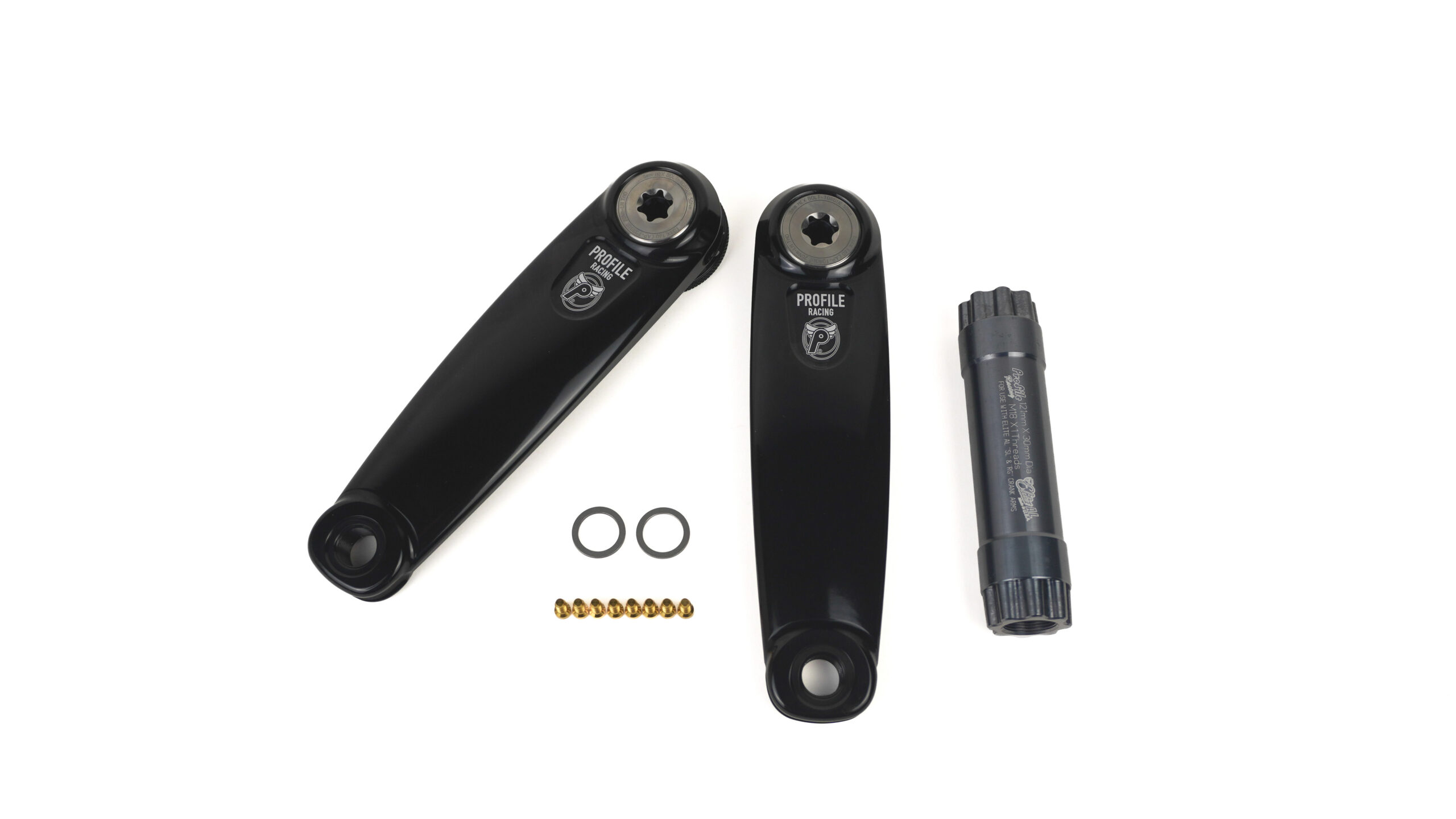

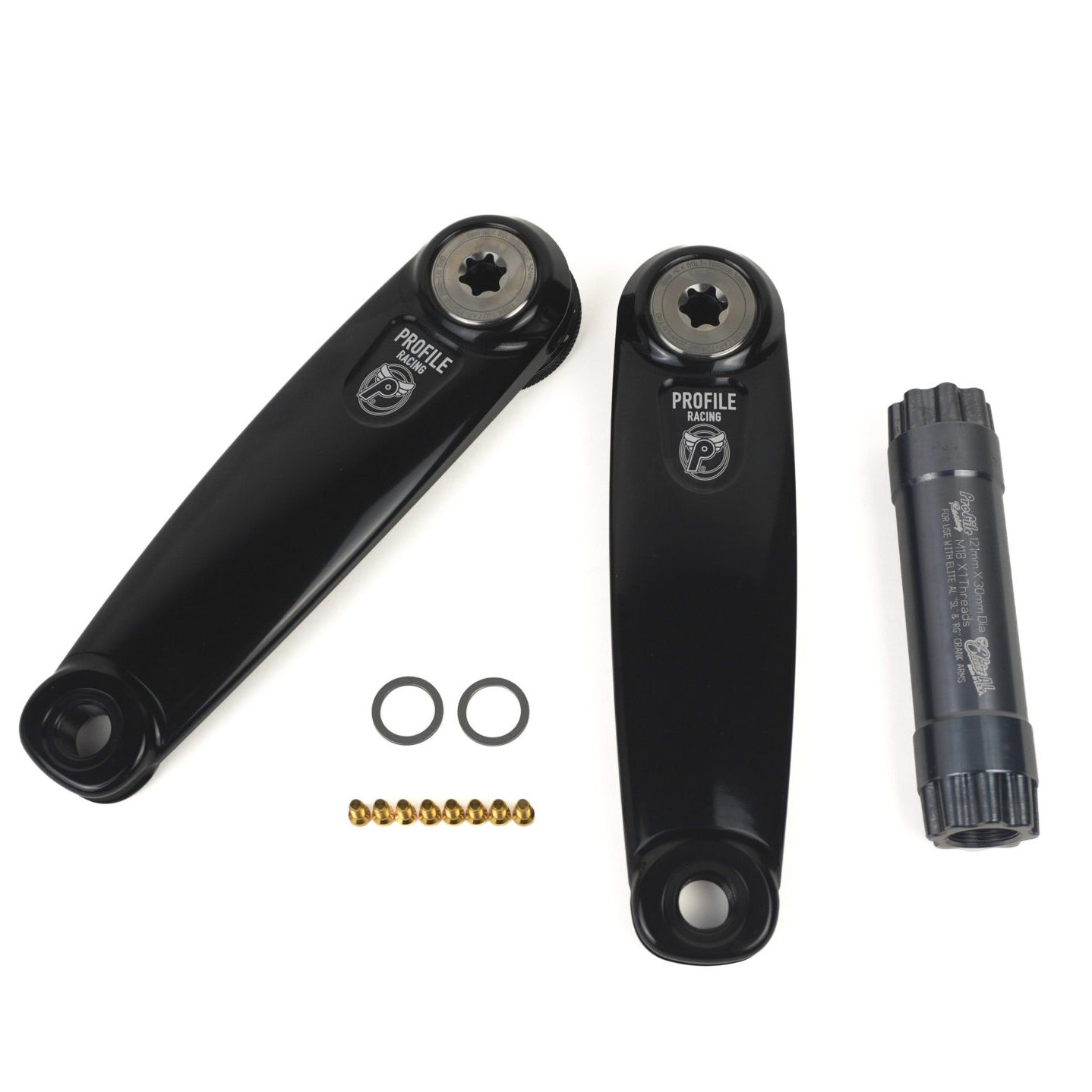

Kit includes: LH & RH crank arms, 30mm axle, pedal washers, 8-pcs Titanium T20 Torx mounting screws
*** Profile Elite AL Single Chainring Spider, 1 X Direct Mount Chainrings, and 30mm Bottom Brackets sold separately***
Features:

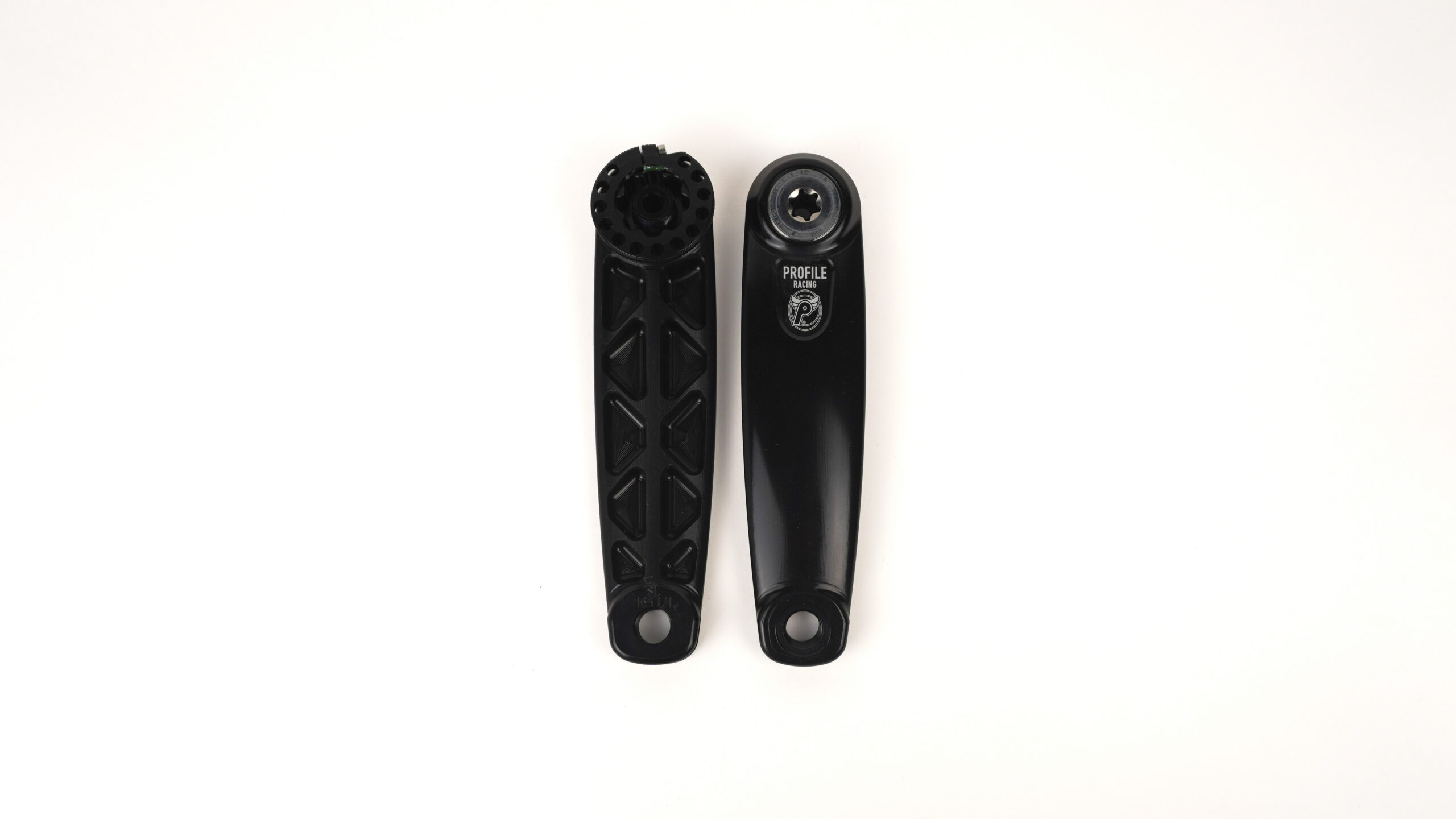

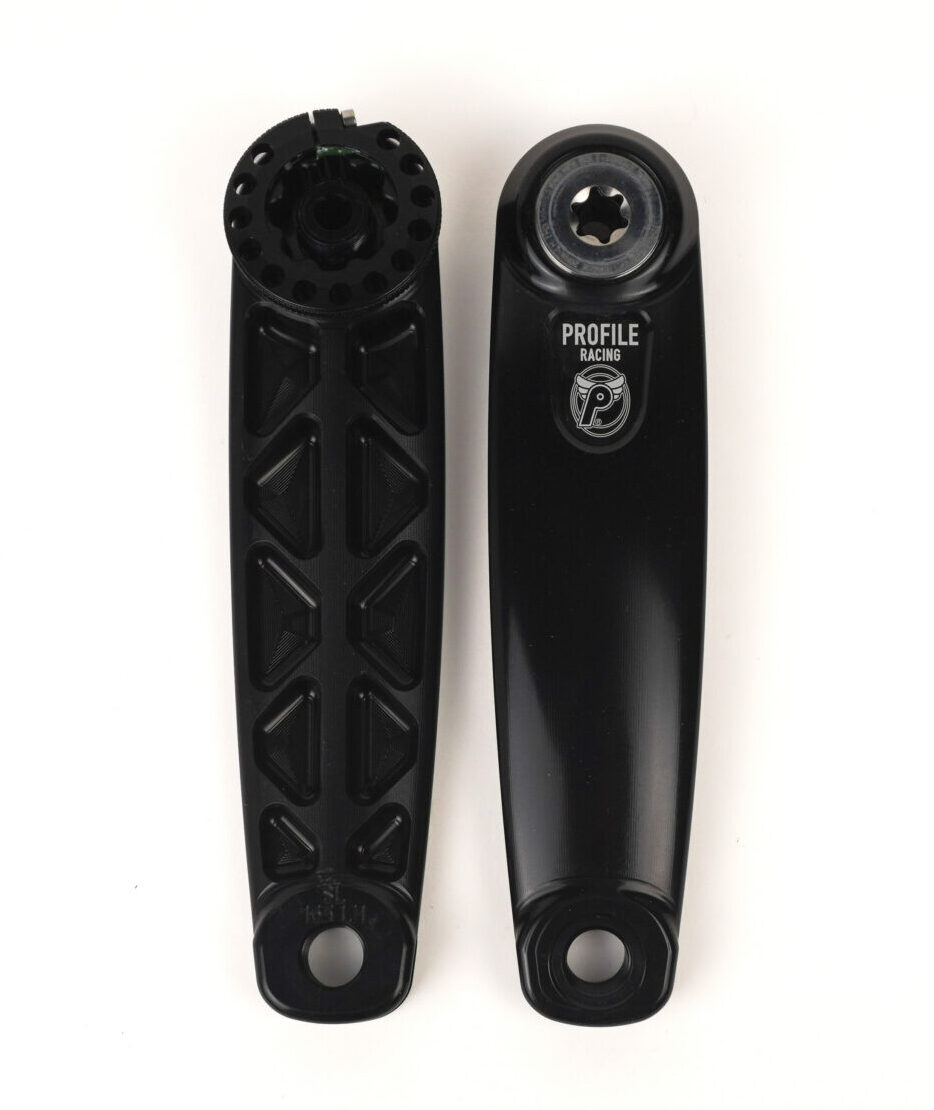

-Precision CNC 3-D surfaced machined from 7075 Billet Aluminum
-Slim & Aero design – Lighter & lower Q-factor compared to Elite AL “HD” crank
-Adjustable pre-load ring on non-drive crank arm for precise bottom bracket adjustment
–Supplied with self extractor axle bolts(8mm Hex) and caps(T60 Torx)
-For use with 30mm axle bottom brackets
-Anodized color finish
-Two year warranty
Specifications:
Q FACTORS:
-161mm on 68mm BSA/BB86 bottom bracket
-166mm on 73mm BSA/BB92 bottom bracket
-176mm on 83mm BSA/BB107bottom bracket
CHAINLINE:
-45mm (on 68mm BSA/BB86 bottom bracket with 3mm offset spider/chainwheel)
-47.5mm (on 73mm BSA/BB92 bottom bracket with 3mm offset spider/chainwheel)
-52.5mm (on 83mm BSA/BB107 bottom bracket with 3mm offset spider/chainwheel)

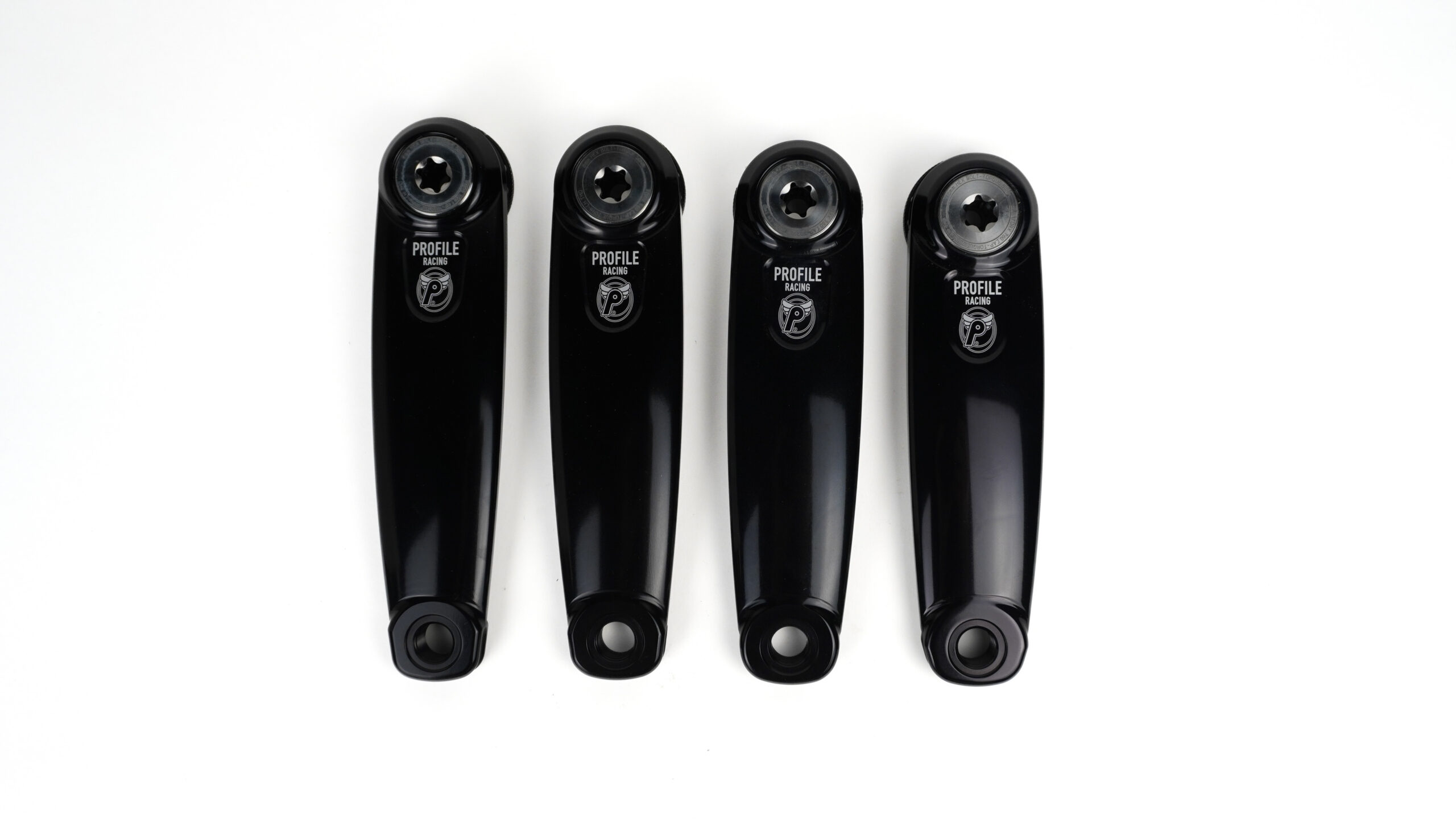

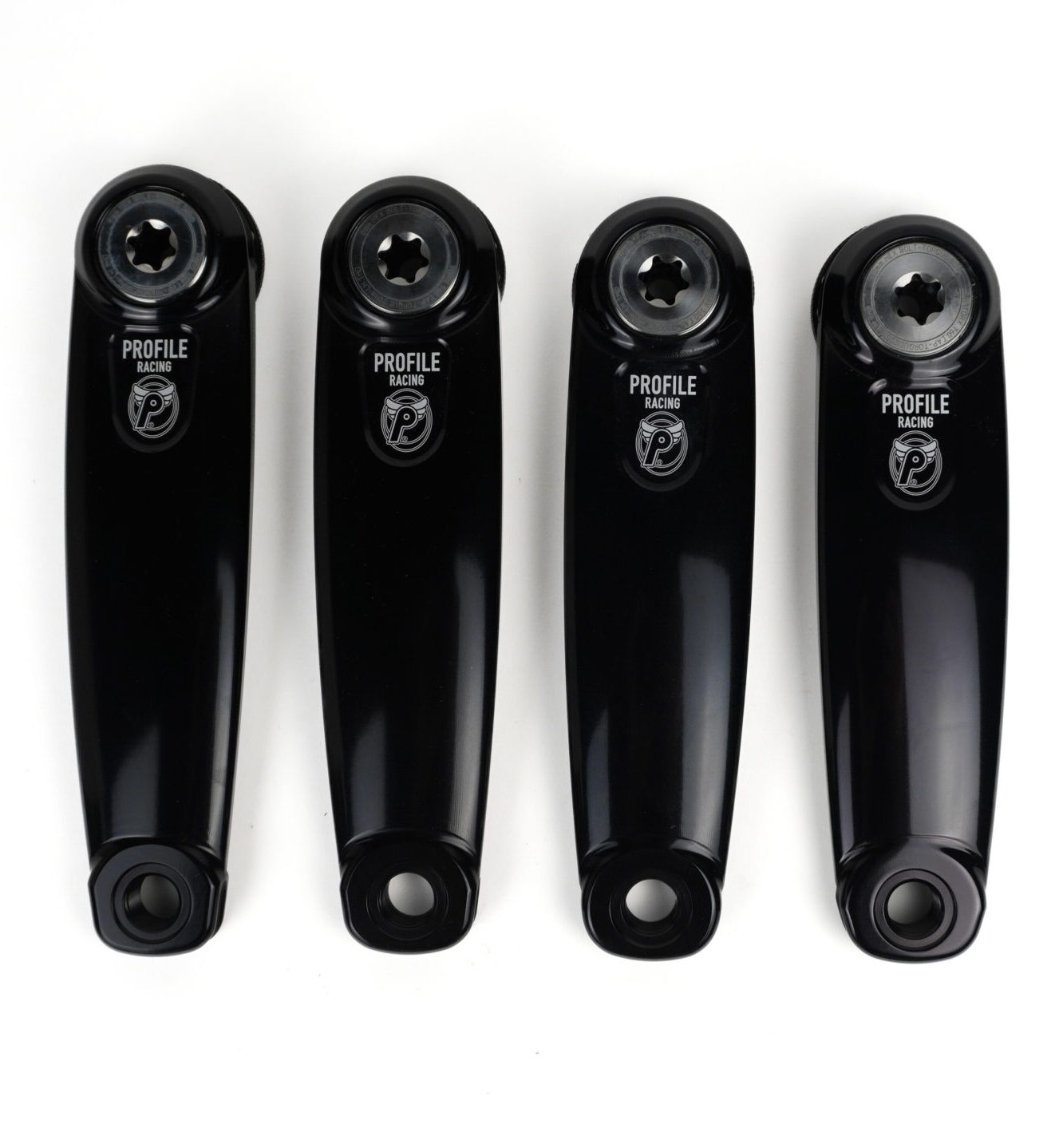

LENGTHS: 145mm, 150mm, 155mm, 160mm, 165mm 170mm, 175mm
AXLE:
-7075 AL
-30mm dia. with Profile 8-Spline Taper
-M18 x 1 axle bolt threads
-Lengths:
-121mm(for use with 68mm BSA & BB86 bottom bracket)
-126mm(for use with 73mm BSA & BB92 bottom bracket)
-136mm(for use with 83mm BSA & BB107 bottom bracket)
AXLE MOUNTING INTERFACE: Profile 8-Spline Taper
SPIDER/CHAINWHEEL MOUNT: SRAM 8 Bolt (T20 Torx),
CRANK ARM MATERIAL: 7075 Billet Aluminum
WEIGHT: 665g (165mm) LH & RH crank arms with axle, bolts, and caps
HARDWARE: M18 x 1 aluminum self extractor bolts(8mm Hex) & 6Al-4v Titanium T60 Torx caps(Natural TI color), Stainless Steel pedal washers, 8-pcs Titanium T20 Torx mounting screws
Note: Although Elite AL SL crank arms and axle are proprietary and can only be used in conjunction with one another, bottom bracket and spider/chainwheel are not. This means many other component manufacturer’s 30mm axle bottom brackets and SRAM 8 Bolt spiders/chainwheels are compatible with this crankset. There are plenty out there to choose from!
