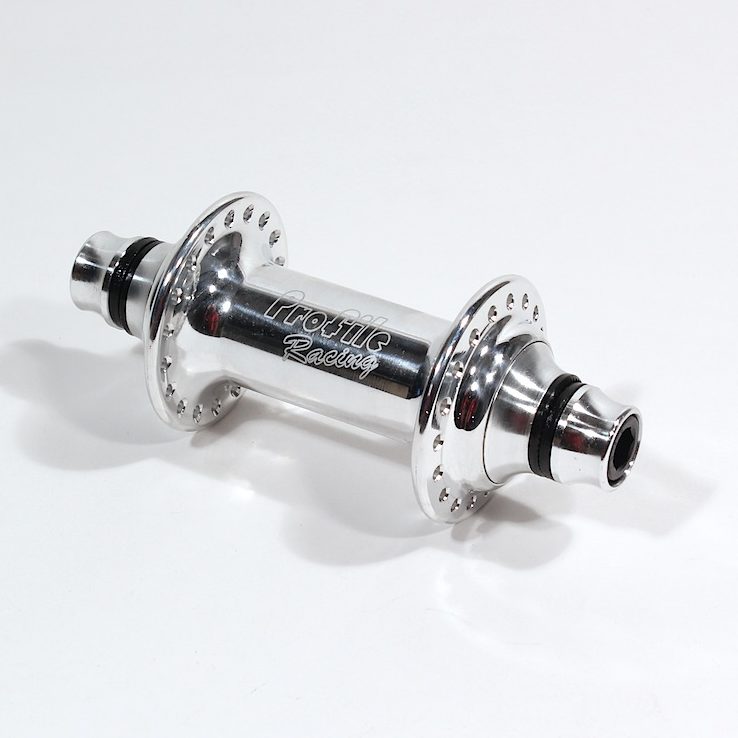

ELITE FRONT HUB
BUILD YOUR OWN HUB (BYOH)
Choices for following:
-Axle Bolts: Choose any Chromo bolt option at NO EXTRA CHARGE!
-Elite Front Hubs are designed to match the style of the Elite and Totem cassette hubs as well as the Nomad Freewheel hub.
- Low Flange hubshell
- Aluminum or Chromoly hollow 3/8″axle for dramatic weight savings
- Bolt choices for 3/8″ threaded axle:
-Standard 3/8 socket head bolts(8mm hex)- come with anodized Volcano cones
-17mm Hex Head outer w/8mm internal hex
-Button Head w/8mm internal hex
- Color matched anodized Volcano cones and aluminum cone spacers with hardened CrMo knurls to bite into dropouts.
- Chromoly and Titanium bolts available
- CrMo 14mm axle option(14mm Alum nuts included)
- 36h or 28h
- Standard BMX 100mm hub width
- 3/8’s aluminum axle NOT intended for heavy street riding.
Colors: Red, Black, Blue, Polished, Gold , Green, Purple, Aqua, Matte Black, White
Elite Front Hub Weights:
Hub w/CrMo Axle Bolts: 8.1oz / 231g
Hub w/Ti Axle Bolts: 7.3oz / 207g
