MINI FRONT HUB
BUILD YOUR OWN HUB (BYOH)
Choices for following:
-Axle Bolts: Choose any Chromo bolt option at NO EXTRA CHARGE!
-Profile Racing designed Mini Front Hubs to be the best all around hubs available. They are suitable for trails, racing, street, and park use.
- Low Flange hubshell
- Aluminum or Chromoly hollow 3/8″axle for dramatic weight savings
- Bolt choices for 3/8″ threaded axle:
-Standard 3/8 socket head bolts(8mm hex)- come with polished Volcano cones
-17mm Hex Head outer w/8mm internal hex
-Button Head w/8mm internal hex
- Chromoly and Titanium bolts available
- CrMo 14mm axle option(14mm Alum nuts included)
- 36h or 28h
- Standard BMX 100mm hub width
- 3/8’s aluminum axle NOT intended for heavy street riding.

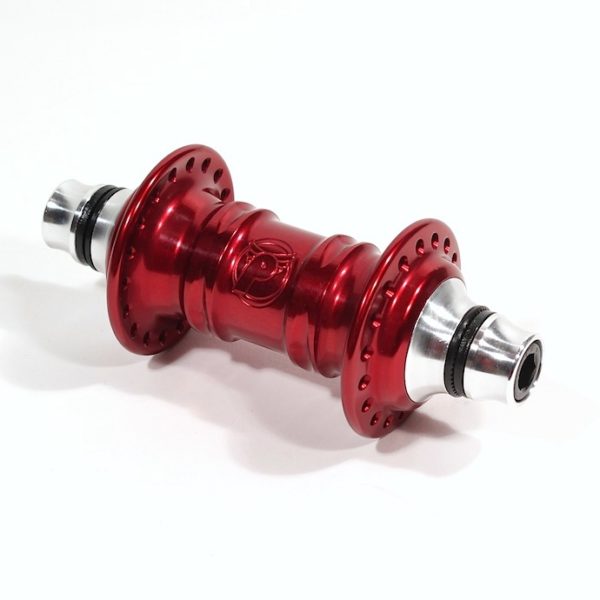

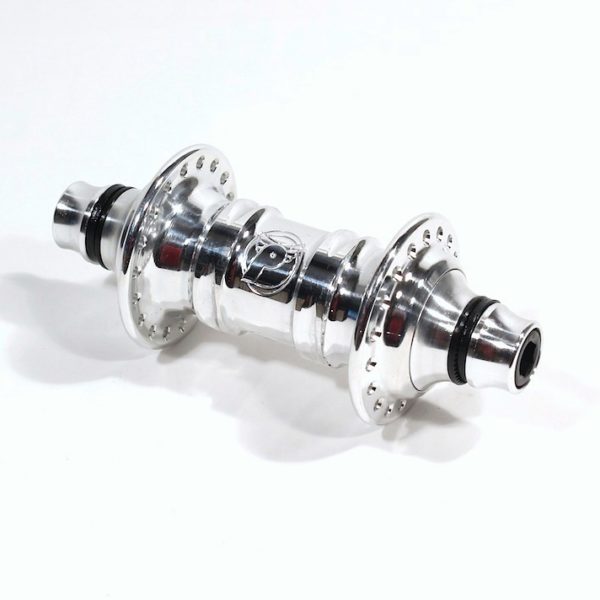

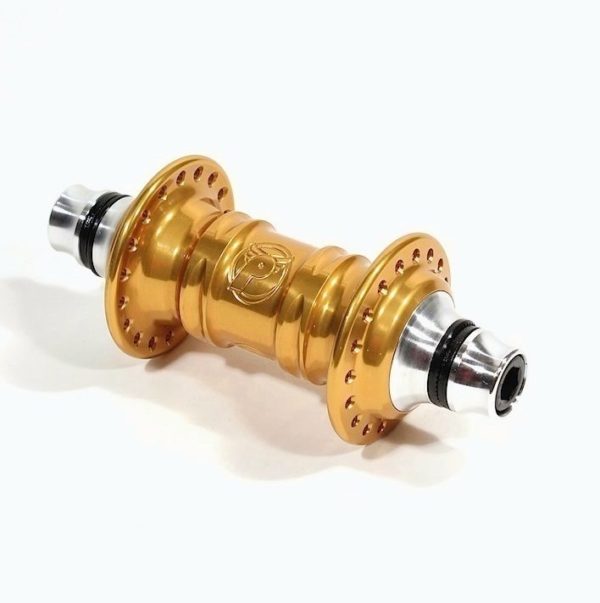

Colors: Red, Black, Blue, Polished, Gold , Green, Purple, Aqua, Matte Black, White
Mini Front Hub Weights:
Hub w/ 3/8 CrMo Axle Bolts: 8.15oz / 232g
Hub w/ 3/8 Ti Axle Bolts: 7.4oz / 206g
Hub w/ 14mm Mini Front GDH CrMo Axle + Al Axle Nuts: 11.35oz / 323g
