Profile’s Tech Tip #45: What is in a Profile Mini Rear Hub (14mm)?

Mini Explode #1

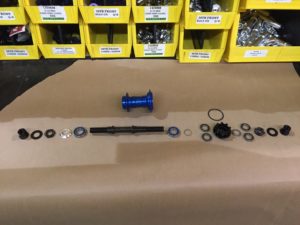

Here is a photo with exploded images of the complete internals of a Profile Mini Rear hub.

As with all Profile Racing product, you can buy replacement parts for everything we make.

We also advise getting hub rebuilds done through your local bike shop as they have the proper press tools and technique.

Mini Explode #1

The Rear 14mm Mini Hub’s complete list of parts are below with directive arrows showing in which direction the parts should be mounted.

A. 14mm Nut

B. 14mm Washer

C. Non-Drive 14mm Jam Nut

D. Non-Drive 14mm Cone

E. 6903 Hub Body Bearing

F. 14mm Mini Axle

G. Hub Shell with Ratchet Ring

Mini Explode #2 copy 2

H. Drive-Side 14mm jam Nut

I. 6802 Driver Bearing

J. Internal Driver Spacer

K. Unloaded driver

L. Cassette Driver Seal

M. Driver Shim



Mini Explode #3 copy 2
